Diesel Powered Mining Dump Truck Articulated

Name: Diesel Powered Mining Dump Truck Articulated
Brand: Beijun
Price: 1 USD

China Diesel Powered Mining Dump Truck Articulated wholesale

Brand Name : Beijun

Model Number : BJUK-12

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 1000 Set/Sets per Month

Delivery Time : 7 days

Packaging Details : Customized packaging

Dimensions (LxWxH) (mm) : 7735×1949×2357

Curb weight (T) : 12.5

Bumper Bucket volume (m3) : 6

Rated load capacity (T) : 12

Maximum traction force (kN) : 125

Loading height (mm) : 1958

Minimum ground clearance (mm) : 316

Approach angle (°) : 14

Contact Now

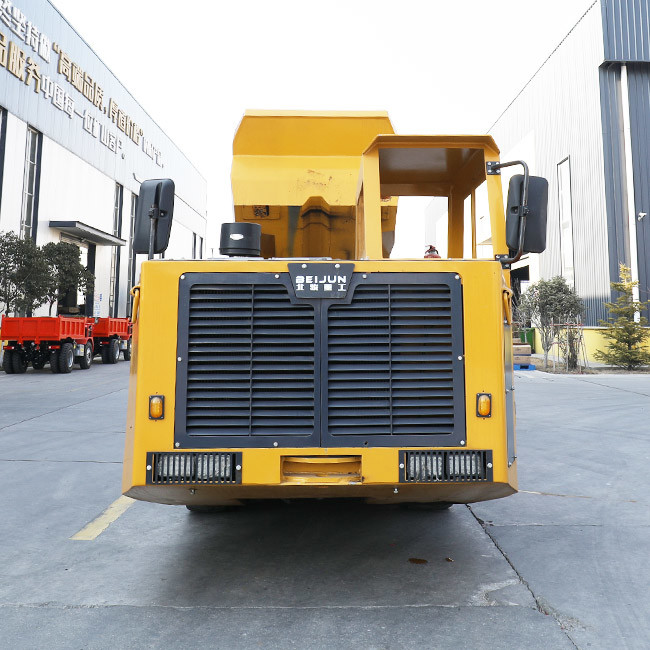

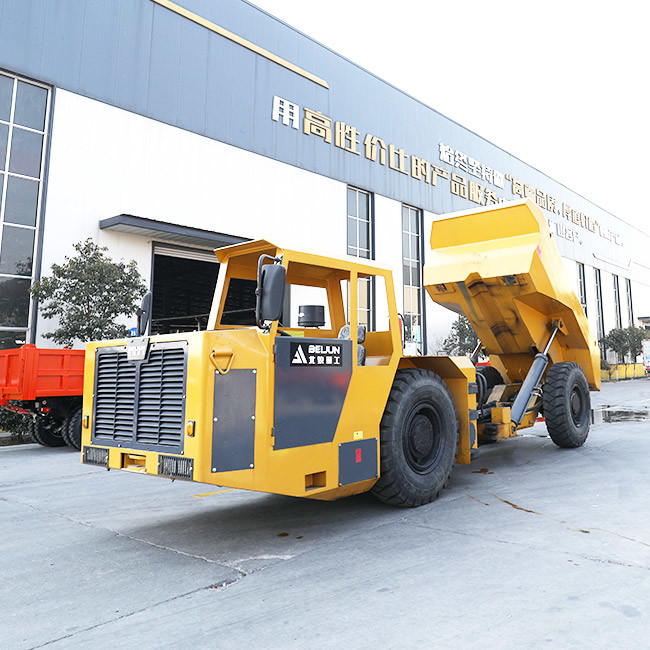

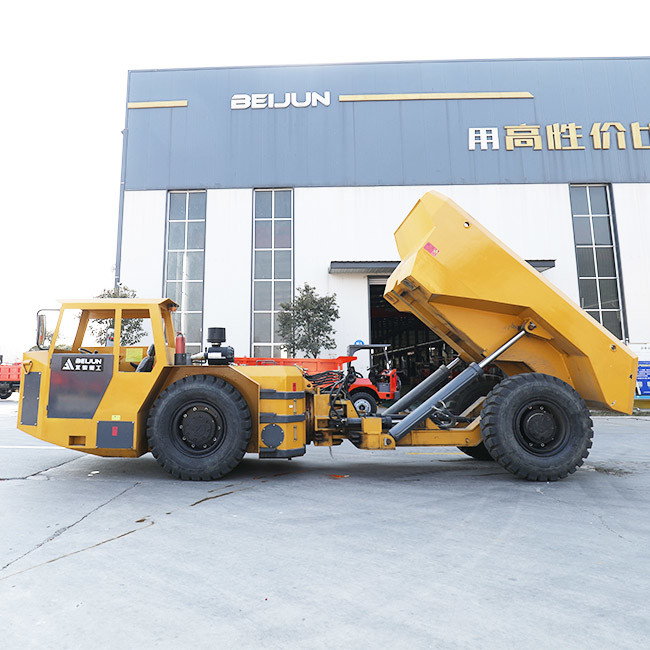

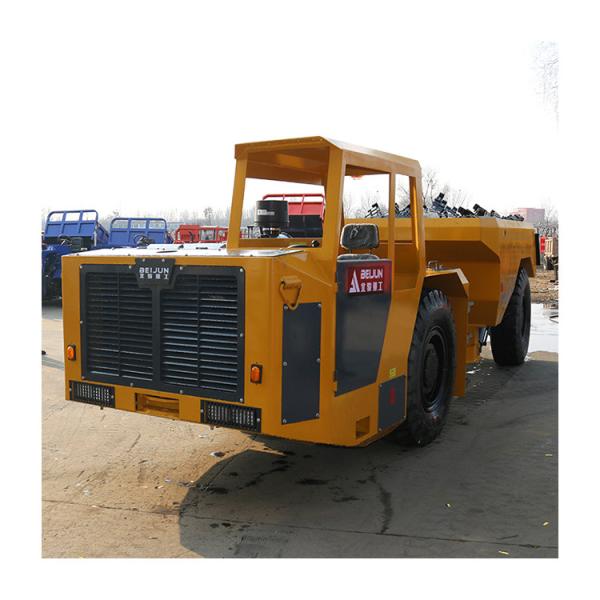

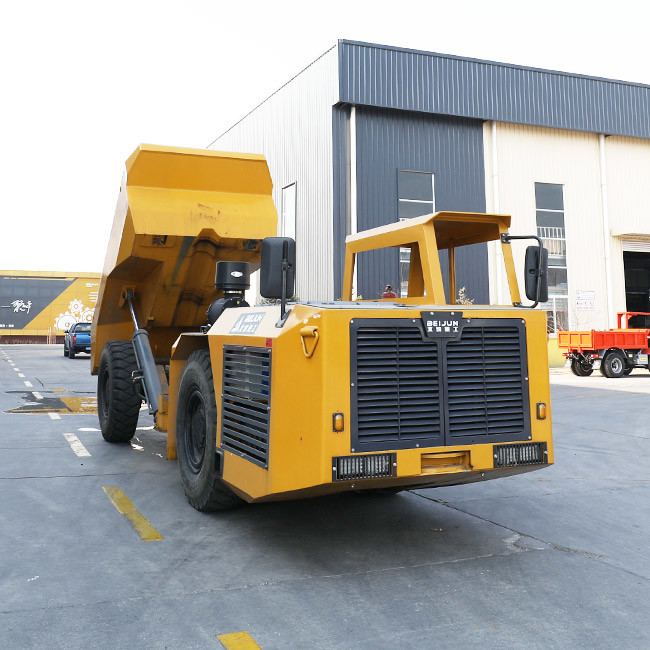

12 Tons Diesel Articulated Underground Mine Dump Truck BJUK-12

BJUK-12 underground truck is specifically designed to operate in narrow-vein mining conditions. Its key features, such as four-wheel drive, lateral swing mechanism, articulated frame design, high-strength structure, self-unloading carriage, automatic central lubrication system, and advanced braking system, make it a reliable and efficient vehicle for mining operations. The ROPS and FOPS certifications ensure the safety of the operator while working in the mine. Overall, the BJUK-12 is a valuable asset for any mining operation that requires a compact and maneuverable underground truck with high payload capacity and durability.

the Specification of Underground Truck BJUK-12
Dimensions (LxWxH) (mm)	7735×1949×2357
Curb weight (T)	12.5
Bumper Bucket volume (m3)	6
Rated load capacity (T)	12
Maximum traction force (kN)	125
Maximum height of the machine when unloading (mm)	3880
Loading height (mm)	1958
Minimum ground clearance (mm)	316
Minimum turning radius (outside) (mm)	7263
Approach angle (°)	14
Gradeability (heavy load) (°)	14
Maximum lift angle of the car box (°)	69
Dumper lift time (s)	12
Dumper drop time (s)	6
Maximum forward speed (Km/h)	28
Reverse maximum speed (Km/h)	10
Diesel engine brand	Weichai Power
Diesel model	WP6G175E331
Diesel Emissions	EUROIII
Diesel engine power	129kW@2200rpm
Max torque/speed	750Nm/1700rpm
Air intake system	Dry three-stage filtration
Exhaust system	Exhaust gas purifier
Torque Converter Model	YJ320B-1
Gearbox	BS428
Tire	14.00-24
