Customized 25ton Mining Dump Truck With Cab For Transport Vehicle Mining Equipment

Name: Customized 25ton Mining Dump Truck With Cab For Transport Vehicle Mining Equipment
Brand: Beijun
Price: 1 USD

China Customized 25ton Mining Dump Truck With Cab For Transport Vehicle Mining Equipment wholesale

Brand Name : Beijun

Model Number : UQ-25Q

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 120 Set/Sets per Month

Delivery Time : 18 days

Packaging Details : Customized packaging

Engine Model : Yuchai YC6L340-33

Engine Power : 243KW

Transmission Model : FASITE RT11509C

Drive Mode : 6x4

Dimension of Bottom Spring Plate : "Front 90*16 Rear 90*24

Cabin : Closed Cabin with A/C

Type of Bucket : Right Angle Type

Loading Capacity : 25 Tons

Cooling sytem : Standard Water Cooling System

Contact Now

Product Features of 25 Ton Underground Mining Dump Truck

Reliable production performance: equipped with widened brake friction plates at the front and rear, dual circuit air braking, ensuring the possibility of continuous production under heavy loads and downhill conditions. Spring energy storage and gas cut-off braking ensure the safety of mining car braking under complex working conditions.

  Good maneuverability and passability: adopting a 2-axis structure, with a small turning radius, flexible maneuverability, low vehicle failure rate, and high attendance rate, it is suitable for use in mining areas with small loading and unloading areas, frequent turns, U-turns, and many uphill and downhill conditions. It can achieve excellent productivity while equipped with various enhancement technologies, thereby improving productivity, extending normal operating time, and ensuring that operators and staff are safer at work. The standard operator positioning system prevents accidental movement of the machine and protects the safety of both the machine and the operator through the hydraulic system's neutral function and door sensors.

  Product parameters of  25 Ton Underground Mining Dump Truck

Model	UQ-25
Engine Model	Yuchai YC6L340-33
Engine Power	243KW
Total Dimension	7900x2420x2720mm
Transmission Model	FASITE RT11509C
Transmission Gear	10 Forward Gear, 2Back Gear,Rear High Speed Controller
Drive Mode	6x4
Front Axle Model	Styer Axle
Rear Axle Model	Styer Axle
Tire Model	1100R20 Radial steel tire, Rear Double Tyre One Side,
No.of Bottom Spring Plate	Front 11 PCS, Rear 12 PCS
Dimension of Bottom Spring Plate	Front 9016 Rear 9024
Size of the Bucket:Length×width×height	5000x2300x1200mm
Type of Bucket	Right Angle Type
Thickness of Bucket Steel Plate	bottom 10mm side 8mm
Unloading Type	Hydraulic Double Top Dump
Steering Type	Hydraulic power steering
Braking Type	Air Brake
Cabin	Closed Cabin with A/C
Driving Position	Left Hand Drive
Cooling sytem	Standard Water Cooling System
Loading Capacity	25 Tons

Product Tags:

Customized Mining Dump Truck

Transport Vehicle Mining Dump Truck

25ton Mining Dump Truck

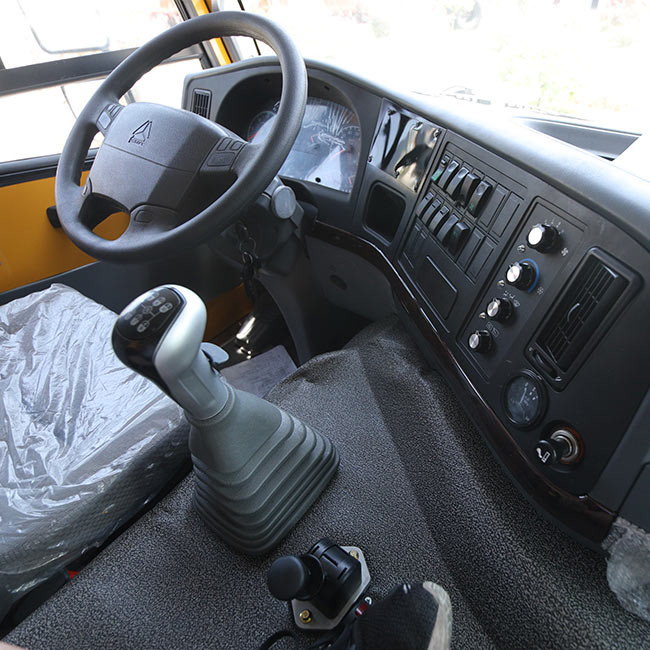

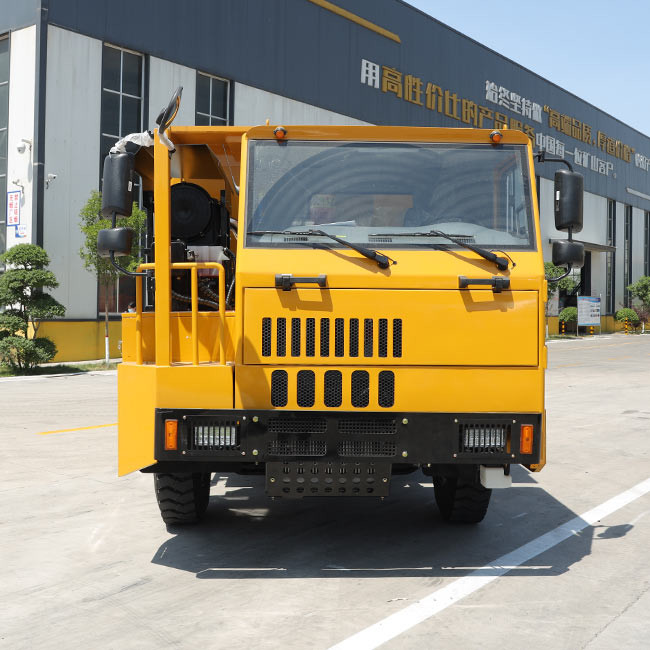

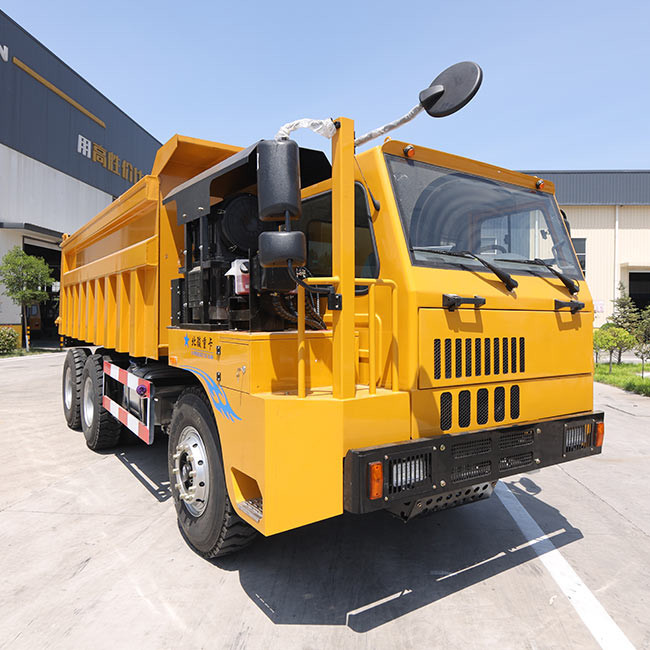

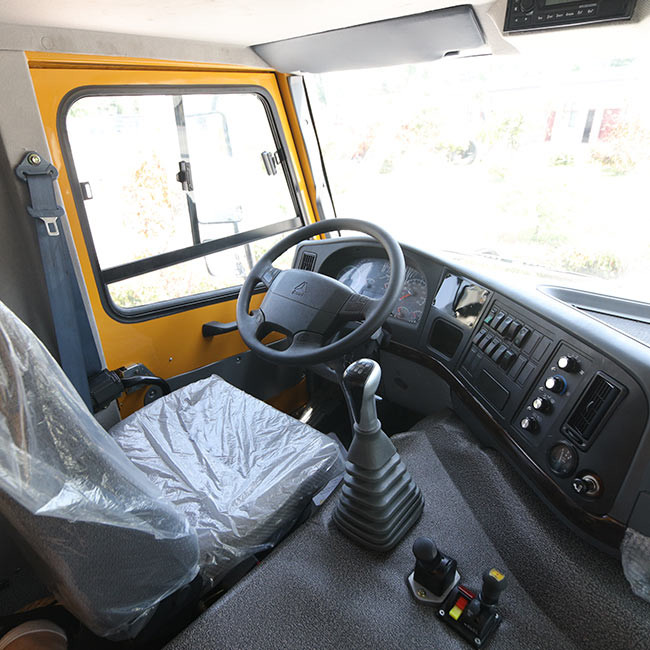

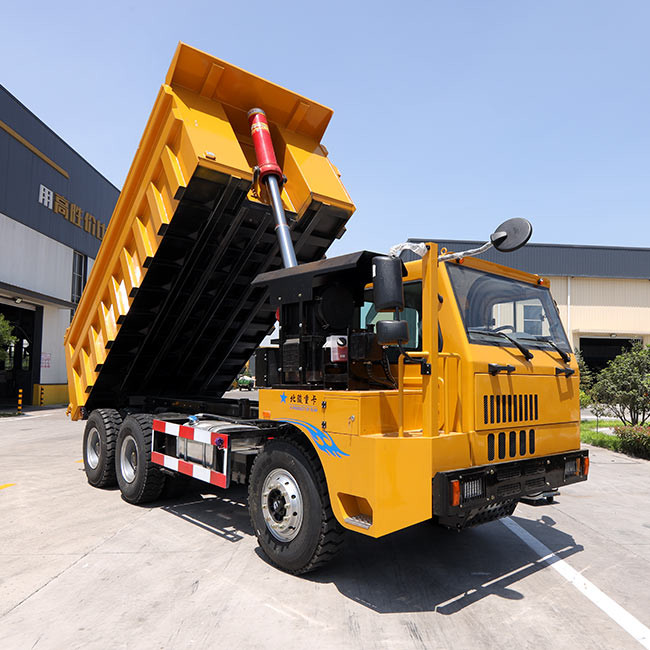

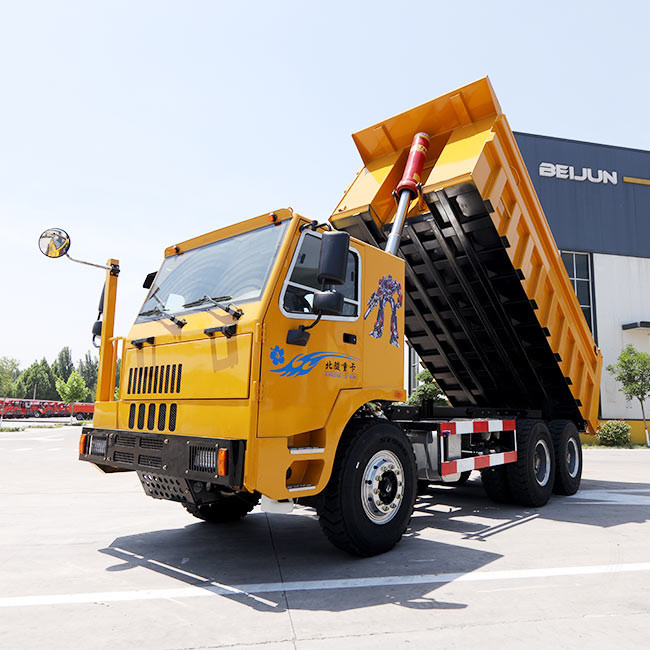

Customized 25ton Mining Dump Truck With Cab For Transport Vehicle Mining Equipment Images
