Product parameters of 10 Tons Mine Dump Trucks
Mining dump trucks belong to non road dump trucks, mainly used for transporting materials from heavy construction sites, quarries, and mines. As the demand for payload capacity continues to expand, the size of mining dump trucks is also increasing. Due to the large volume of mining dump trucks, which can transport large amounts of materials, customers often prioritize using only one mining dump truck instead of a whole truck fleet because it is more economical. Mining dump trucks can transport hundreds of tons of materials at once.
UQ-10 is mainly used in underground mines with a loading capacity of 10 tons. The frames are articulated in the center, the steering angle is large, the turning radius is small. You can contact us at any time for any questions. Our services come in action. Rich export experience, products are exported to Southeast Asia, Central Asia, South America, and Africa. We can help customers perfectly match their usage conditions, vehicle equipment performance, and usage habits, enabling them to purchase satisfactory products. The price of container transportation is slightly higher than that of bulk transportation. It has requirements for the length and height of products, but it has good product protection. Strive to shorten the wheelbase and total length of the loading and unloading points in the mining area, with a narrow area and frequent turning and reversing; The roads in the mining area are mostly temporary roads, with many uphill and downhill slopes and sharp turns in mountainous areas. In order to maintain mobility and flexibility, efforts are made to shorten the wheelbase and total length to reduce turning radius and reverse frequency. Therefore, a basic 2-axis 4x2 structural type is adopted, which can ensure a simple chassis structure, convenient maintenance and repair, and sensitive steering maneuverability.
| Model | UQ-10 |
| Engine Model | YUNEI 4102 with Turbocharge |
| Engine Power | 70KW/95HP |
| Total Dimension | 4800*1800*1600mm |
| Transmission Model | Wanliyang 545 |
| Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x2 |
| Front Axle Model | 1098 |
| Rear Axle Model | 1098 |
| Tire Model | 750-16 Line Tire,
Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
| Dimension of Bottom Spring Plate | Length 70mm, Width 10mm |
| Size of the Bucket:Length×width×height | 3200mm*1800mm*600mm |
| Type of Bucket | U type Bucket |
| Thickness of Bucket Steel Plate | bottom 8mm side 6mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 10 Tons |
Product Tags:
|
|

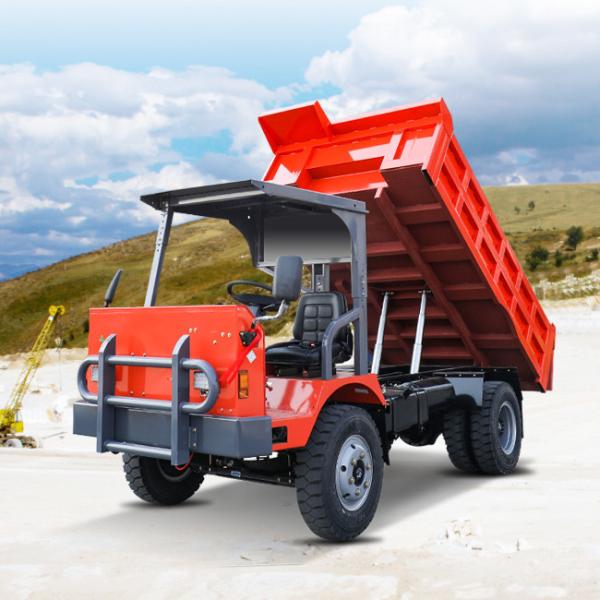

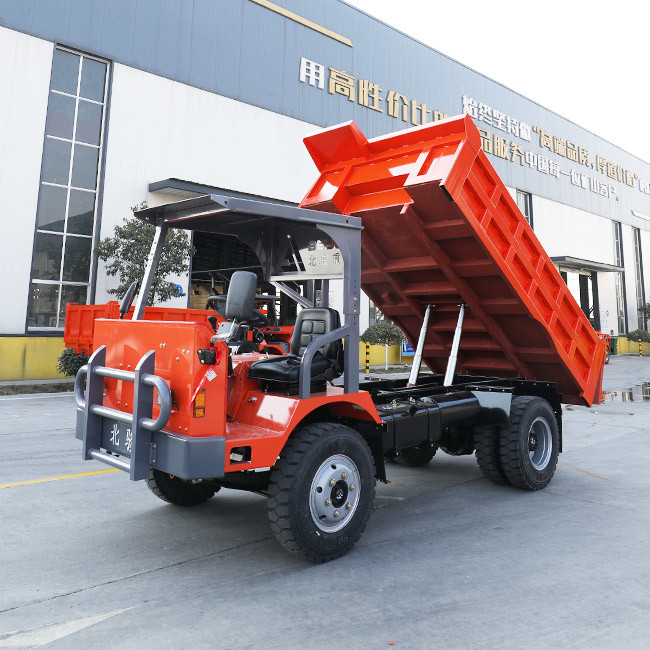

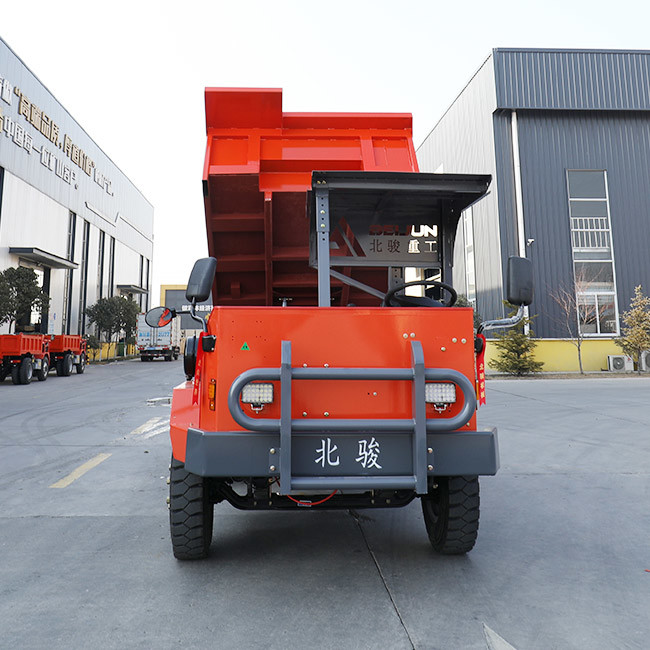

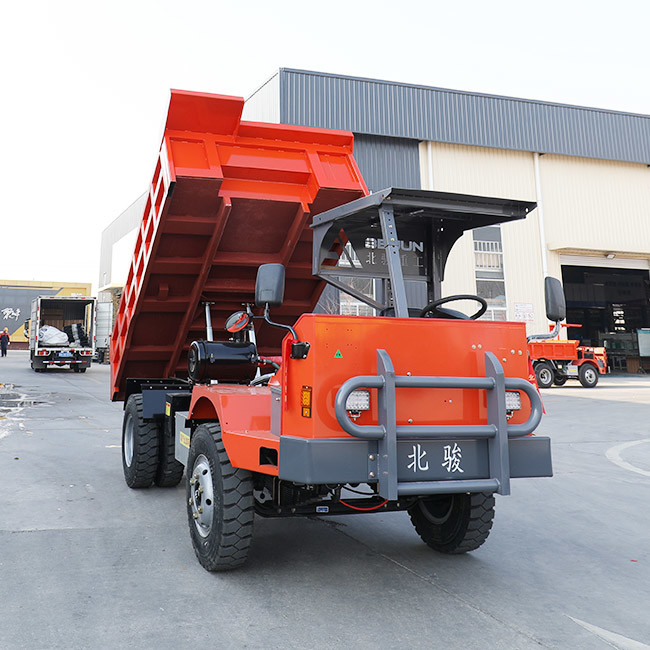

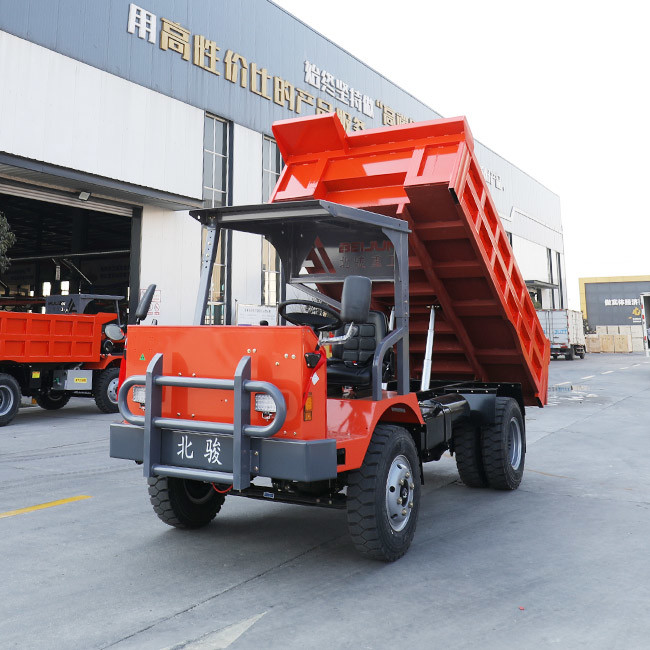

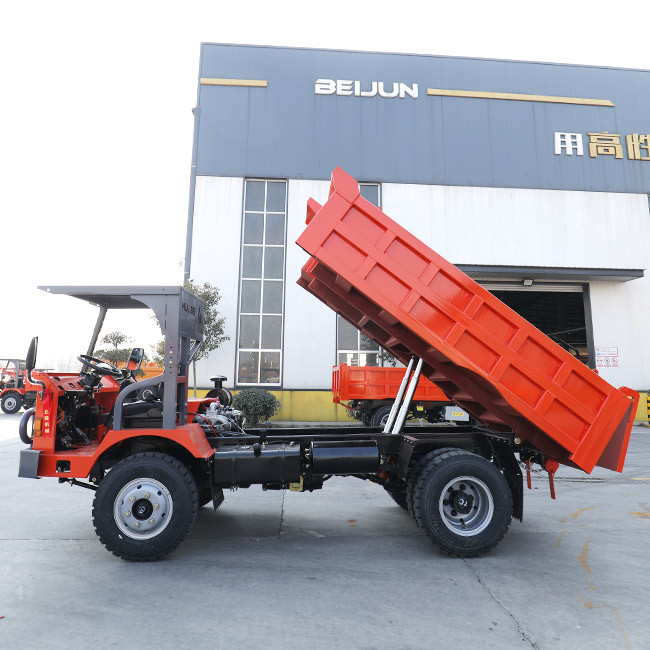

10 Ton Underground Mining Truck With Powerful YUNEI 4102 Engine Images
|
