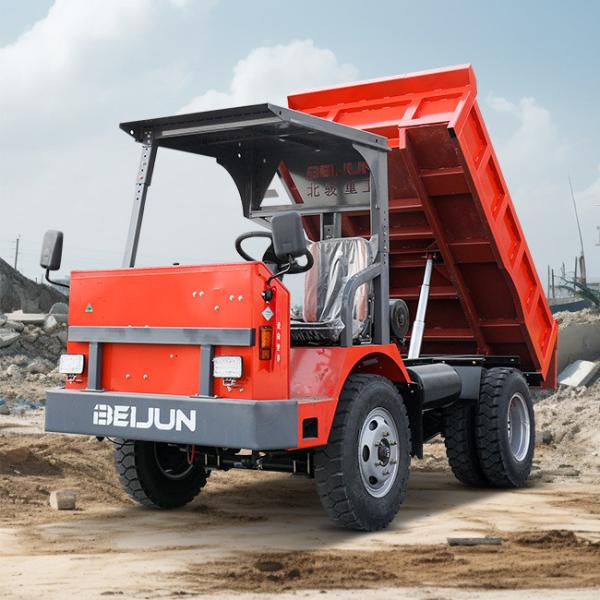

Product parameters of 3 Ton Dump Truck
UQ-3 mining dump trucks mainly used for underground mines, above ground mines pit and mining areas, muddy roads, tunnel construction, Building construction, swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice etc. The truck Certified to mine safety standards. It have the characteristics of large traction, good climbing performance and strong transportation capacity. The truck Dimension is small, Suitable for working in narrow mine tunnel. Exhaust gas treatment is Water filter purifier, reducing air pollution when working in underground mines.
Production operations using assembly lines. 1. Each job position is arranged in the order of product production process, and each position only completes one or a few fixed processes, with high level of craftsmanship and low error rate. 2. The production capacity of each position on the assembly line is balanced and proportional, so the company has strong production capacity and high product stability.
Beijun Heavy Industry is a large organization with high standards and strict requirements. It is a large-scale group company that integrates research and development, production, sales, after-sales service, and regards responsibility, integrity, pragmatism, innovation, and win-win as its corporate values. This is a group of young people with blood, resilience, vitality, and a spirit of hard work. The average age of employees is only 35 years old, which has overturned most people's understanding of the aging manufacturing industry. The company has a comprehensive organizational structure that can effectively and reasonably allocate various resources, effectively reduce business operating costs, improve productivity, and is an effective prerequisite for providing customers with high-end quality and reasonable prices
| Model | UQ-3 |
| Engine Model | CHANGCHAI 490 |
| Engine Power | 63 HP |
| Transmission Model | Ningjing 130 |
| Transmission Gear | 4 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x4 |
| Front Axle Model | CHITONG ISUZU Axle |
| Rear Axle Model | CHITONG ISUZU Axle |
| Tire Model | 700x16 Line Tire,
Rear Single Tyre One Side, |
| No.of Bottom Spring Plate | Front 7 PCS, Rear 8 PCS, Spare 6PCS |
| Dimension of Bottom Spring Plate | Length 70mm, Width 10mm |
| Size of the Bucket:Length×width×height | 2400mm*1300mm*450mm |
| Type of Bucket | U type Bucket |
| Thickness of Bucket Steel Plate | bottom 6mm side 4mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 3 Tons |
