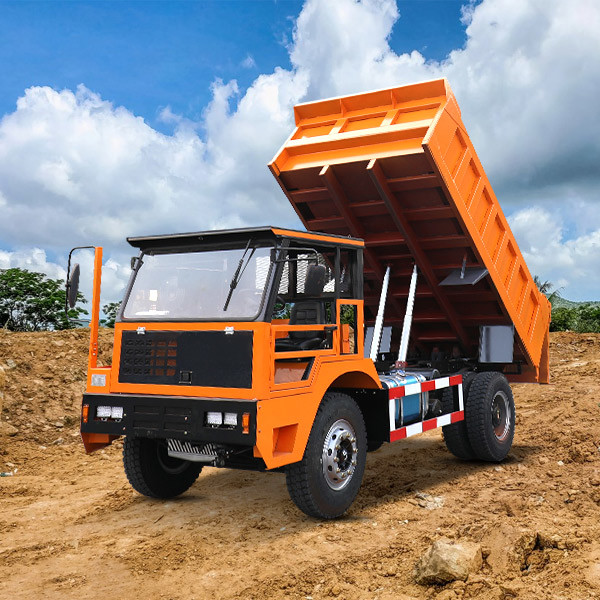

Product parameters of 20Ton Underground Mining Dump Truck
The UQ-20 version features changes and enhancements to the engine and cooling system, operator station, safety and serviceability, durability, and equipment management.The loader also has a larger boom/bucket pump for better control and faster dump speeds and an improved bucket-shaking system to increase dump speeds, particularly with muddy or sticky materials. To optimize load distribution and facilitate dumping, it now has a redesigned bucket with an improved profile for easier bucket filling and faster dumping. Swing body, to ensure full four-wheel landing, great traction.The steel structure of the car body is made of high-quality carbon structural steel, CNC cutting, gas shielded welding, overall processing, surface shot peening and high mechanical strength.Scraper buckets are specially designed for wear parts such as shovel blades and side blades. They are made of wear-resistant materials and have low scooping resistance.
Features such as automatic ride control and automatic declutch are claimed to increase the service life of the loader and to reduce spillage from the bucket. Automatic traction control can reduce tire wear and fuel consumption and the addition of soft stops on the boom, bucket and steering reduce unnecessary stress on the machine. The best power system is matched to give full play to the system performance, and there is a certain reserve of power and strong power.Low fuel consumption, low emissions of pollutants, low noise, environmental protection and energy conservation.The components have strong versatility, low operation and maintenance costs, and good economy.The chain protection function is complete. When the vehicle stops or the vehicle fails, the vehicle is automatically in braking state, which is safe and reliable.Ergonomically designed, air-conditioned closed cab, cushioned seats, visual operator interface, comfortable ride, and maximum visibility.Central articulated body, power steering, good passability.
| Model | UQ-20 |
| Engine Model | YUCHAI Engine with Turbocharge |
| Engine Power | 290HP |
| Total Dimension | 6200*2400*2450mm |
| Transmission Model | FASITE 9JS118 |
| Transmission Gear | 8 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x2 |
| Front Axle Model | Styer Axle |
| Rear Axle Model | Styer Axle |
| Tire Model | 10.00-20 Radial steel tire,
Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 11 PCS, Rear 12 PCS |
| Dimension of Bottom Spring Plate | Length 90mm, Width 16mm |
| Size of the Bucket:Length×width×height | 4500mm*2400mm*1000mm |
| Type of Bucket | U- Type |
| Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 20 Tons |
