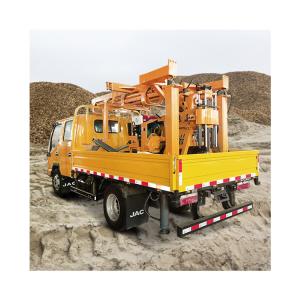

100m 200m Deep Truck Mounted Water Well Drilling Rig High Performance

Name: 100m 200m Deep Truck Mounted Water Well Drilling Rig High Performance
Brand: Beijun
Price: 1 USD

China 100m 200m Deep Truck Mounted Water Well Drilling Rig High Performance wholesale

Brand Name : Beijun

Model Number : XYC-200

Certification : CE,ISO,TUV

Place of Origin : China

MOQ : 1

Supply Ability : 1000 Set/Sets per Month

Delivery Time : 14-30 days

Packaging Details : Customized packaging

Drilling depth(m) : 30-200

Drilling diameter(mm) : 300-75

Drilling angel(mm) : 90-75

Spindle rotating speed(r/min) : 64/128/287/557

Spindle stroke(mm) : 450

Main hoisting line capacity (m) : 35

Hoisting speed(r/s) : 17/35/75/151

Wireline diameter(mm) : 12.5

Contact Now

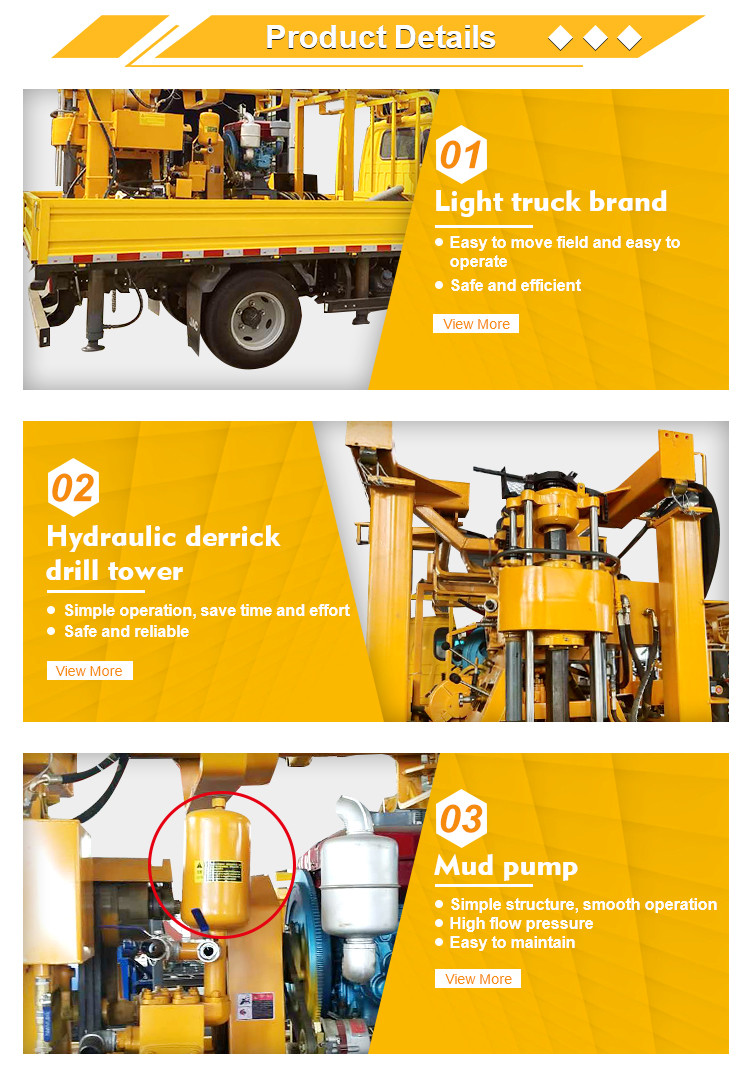

XYC-200 vehicle-mounted hydraulic water well drilling rig has several key characteristics, including:
Multi-function: The rig is designed to perform a variety of drilling tasks, including water well drilling, exploration drilling, and geotechnical drilling.
Vehicle-mounted: The rig is mounted on an automobile chassis, which makes it easy to transport and maneuver on different job sites.
Compact design: The layout of the rig's components is compact and well-organized, which makes it easy to operate and maintain.
High-performance mud pump: The rig is equipped with a high-pressure and high-flow BW160 mud pump, which ensures high drilling efficiency and depth.
Shifting device: The rig has a shifting device that allows it to move on the vehicle, making it easy to operate while drilling.
Hydraulic folding mast: The rig's mast can be folded hydraulically, which makes it safe and convenient to transport.
The XYC-200 vehicle-mounted hydraulic water well drilling rig can be used for a variety of applications, including:
Road and high-rise building foundation exploration: The rig can be used to explore the soil and rock conditions for construction projects.
Concrete structure inspection holes: The rig can drill holes in concrete structures for inspection or repair purposes.
River embankments: The rig can drill holes for the installation of monitoring wells or other purposes on river embankments.
Subgrade grouting holes: The rig can drill holes for grouting in subgrade and other underground structures.
Drilling and direct grouting: The rig can drill holes and inject grout directly into the formations for stabilization or other purposes.
Civil water well: The rig can be used to drill water wells for domestic or commercial use.
Ground temperature central air conditioners: The rig can be used to drill boreholes for geothermal heating and cooling systems.

Parameters of XYC-200 vehicle-mounted hydraulic water well drilling rig
Drilling depth(m)	30-200
Drilling diameter(mm)	300-75
Drilling angel(mm)	90-75
Spindle rotating speed(r/min)	64/128/287/557
Spindle stroke(mm)	450
Main hoisting capacity (single line)(Kg)	1600
Main hoisting line capacity (m)	35
Hoisting speed(r/s)	17/35/75/151
Wireline diameter(mm)	12.5
Mast height(mm)	7000
Mast effective height(mm)	6500
Kelly/active pipe(mm)	59*53
Drill rod(mm)	42/50/60
Drill rig weight(kg)	1150
Power unit	Model	ZS1115 diesel engine
	Rated power	14.7kw/2200rpm
BW-160 mud pump	Rated flow(l/min)	160
	Rated pressure(mpa)	1.3
	Driving power(kw)	5.15
	Main machine weight (kg)	190
	Dimension(mm)	1110725965

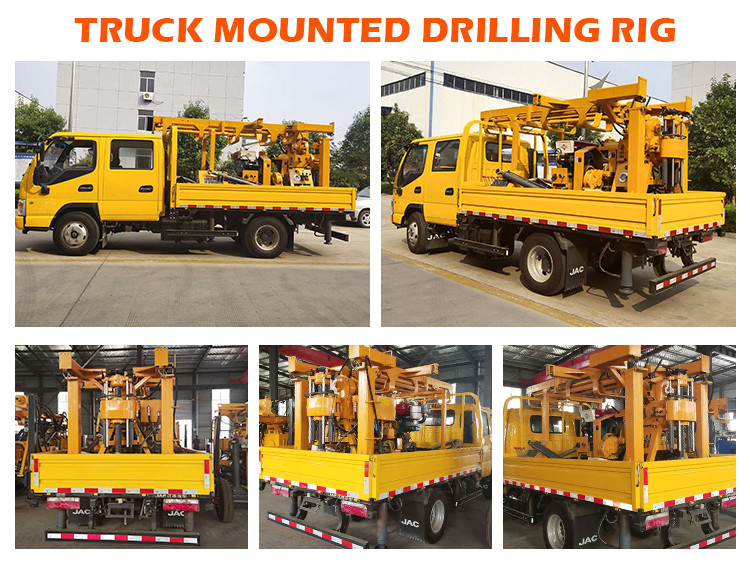

Chassis	light truck(Pictures of vehicle-mounted drilling rigs for reference only)
