Underground Mining 6*4 Heavy Duty 25 Ton Dump Tipper Truck

Shandong Beijun Heavy Industry Co., Ltd.
Contact Now

Underground Mining 6*4 Heavy Duty 25 Ton Dump Tipper Truck

Brand Name : Beijun

Model Number : UQ-25

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 1000 Set/Sets per Month

Delivery Time : 7 days

Packaging Details : Customized packaging

Engine Model : Yuchai YC6L340-33

Engine Power : 243KW

Transmission Model : FASITE RT11509C

Drive Mode : 6x4

Dimension of Bottom Spring Plate : "Front 90*16 Rear 90*24

Cabin : Closed Cabin with A/C

Type of Bucket : Right Angle Type

Loading Capacity : 25 Tons

Cooling sytem : Standard Water Cooling System

Contact Now

Product Features of 25 Ton Underground Mining Dump Truck

Excellent Trafficability: The Beijun underground tunnel dump truck is designed with a compact structure and small turning radius, making it highly maneuverable in narrow spaces. This allows it to operate flexibly in underground roadways and ramps.

Enhanced Safety Features: The dump truck is designed with improved lamps and electrical components that are waterproof and moisture-proof, as well as dedicated anti-slippery tires. This enhances its obstacle crossing capability and ensures high safety in the underground environment, which is characterized by humid air, insufficient light, and slippery road surfaces.

Strong Power and Performance: With large torque, excellent grade, and starting performance, the Beijun underground tunnel dump truck has strong power that enables it to operate efficiently in the underground environment.

High Bearing Capacity: The dump truck is scientifically configured and designed according to mining vehicle design concepts, with a bearing capacity that is 1.5 times that of ordinary road vehicles. This allows it to transport heavy loads in the underground environment.

Overall, the Beijun underground tunnel dump truck offers a range of advantages over other vehicles in its class, including excellent trafficability, enhanced safety features, strong power and performance, and high bearing capacity. These benefits make it a practical and reliable choice for businesses and organizations that require a robust and efficient vehicle for underground mining or construction operations.


Product parameters of 25 Ton Underground Mining Dump Truck

Model UQ-25
Engine Model Yuchai YC6L340-33
Engine Power 243KW
Total Dimension 7900x2420x2720mm
Transmission Model FASITE RT11509C
Transmission Gear 10 Forward Gear, 2Back Gear,Rear High Speed Controller
Drive Mode 6x4
Front Axle Model Styer Axle
Rear Axle Model Styer Axle
Tire Model 1100R20 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 11 PCS, Rear 12 PCS
Dimension of Bottom Spring Plate Front 90*16
Rear 90*24
Size of the Bucket:Length×width×height 5000x2300x1200mm
Type of Bucket Right Angle Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Closed Cabin with A/C
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 25 Tons


Underground Mining 6*4 Heavy Duty 25 Ton Dump Tipper TruckUnderground Mining 6*4 Heavy Duty 25 Ton Dump Tipper TruckUnderground Mining 6*4 Heavy Duty 25 Ton Dump Tipper TruckUnderground Mining 6*4 Heavy Duty 25 Ton Dump Tipper TruckUnderground Mining 6*4 Heavy Duty 25 Ton Dump Tipper TruckUnderground Mining 6*4 Heavy Duty 25 Ton Dump Tipper Truck


China Underground Mining 6*4 Heavy Duty 25 Ton Dump Tipper Truck wholesale

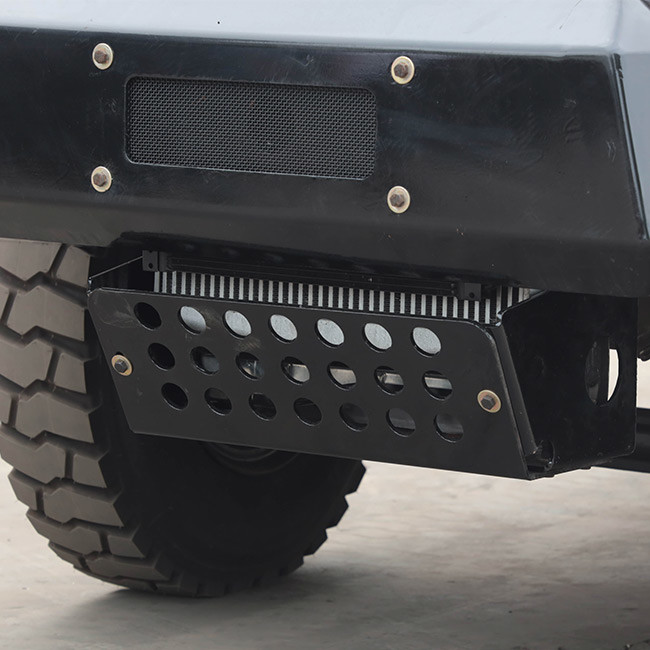

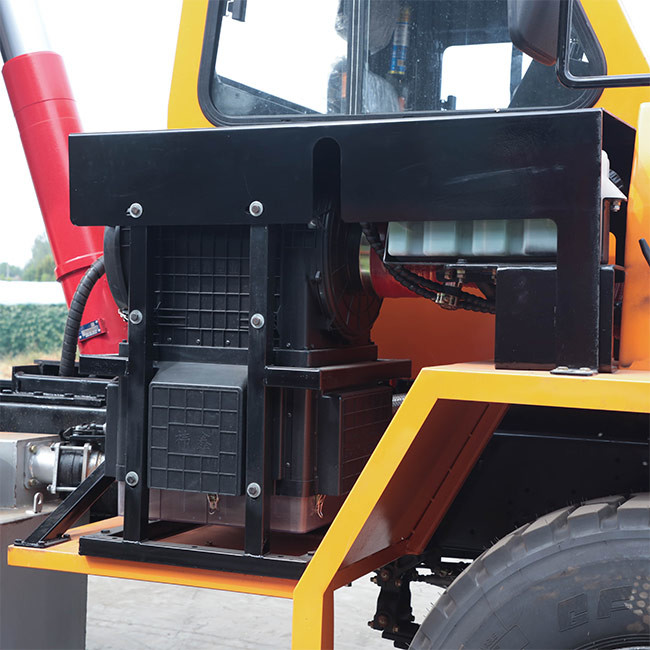

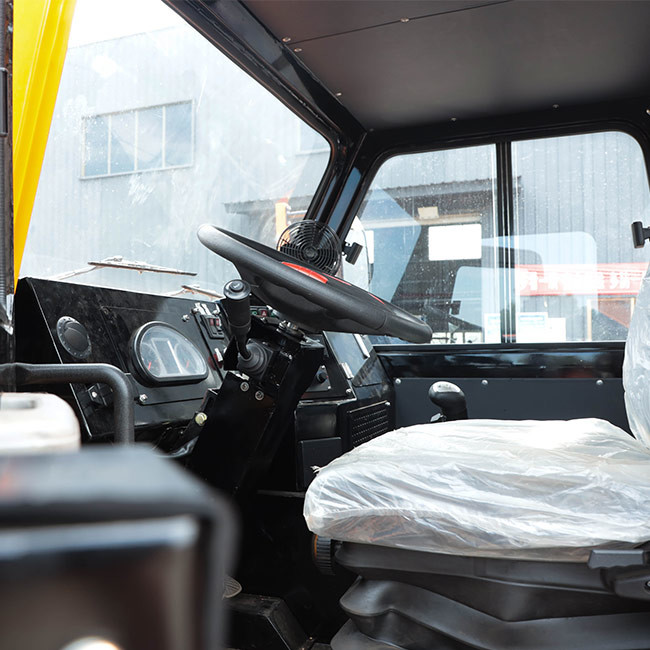

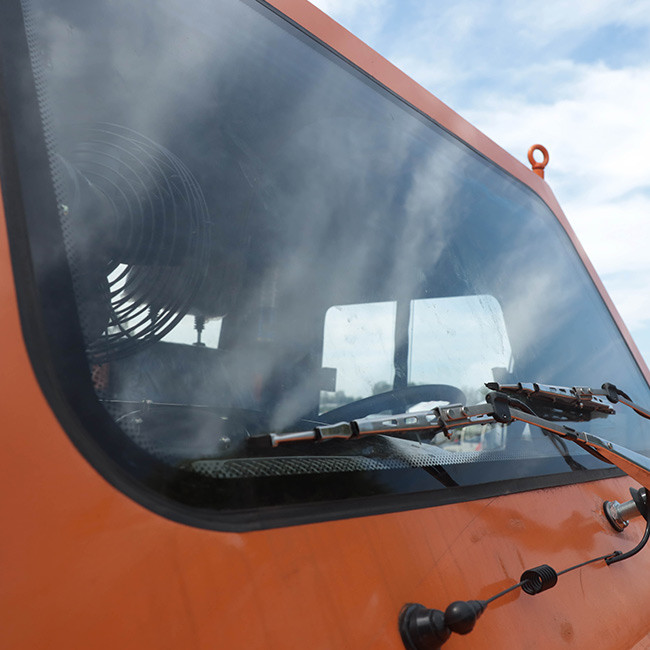

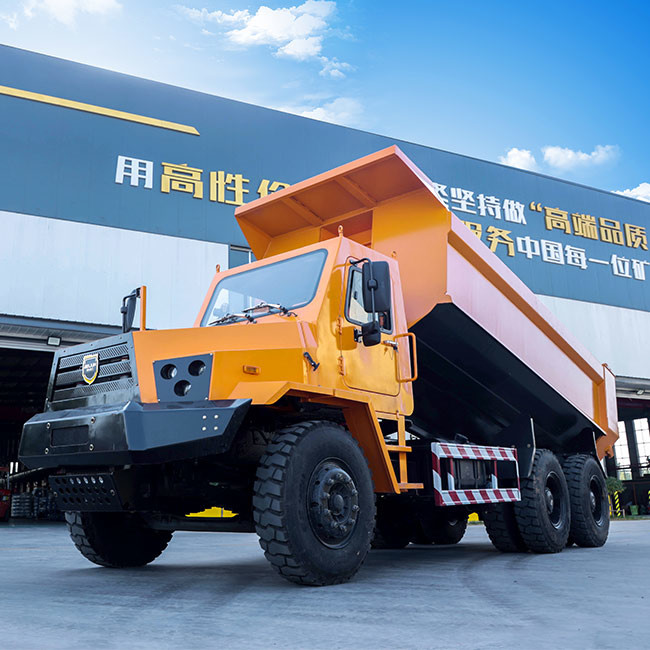

Underground Mining 6*4 Heavy Duty 25 Ton Dump Tipper Truck Images
